Complete Upgraded KTM Headlight Kit
Kits includes stock KTM numberplate and headlight assembly upgraded with
PMXTEC Premium Upgrade Kit, switch mounted on back of
numberplate, and wiring kits for various model years.
 | NOT FOR STREET USE (stock bulb is included in kit and can be used for
street riding, it takes about 2 minutes to swap it out) |
| Fits 2001-2011 XC, MXC, EXC that are pre-wired for headlights (non
pre-wired bikes may require stator replacement, voltage regulators, and/or
wiring mods). |
| No stator mods required for 2 strokes with 2-k3 stators all 4 strokes
(except some XC-F's with SX stators) |
| Retains Factory Look with KTM diamond shaped headlight |
| Bright and durable Osram 65W Halogen Bulb |

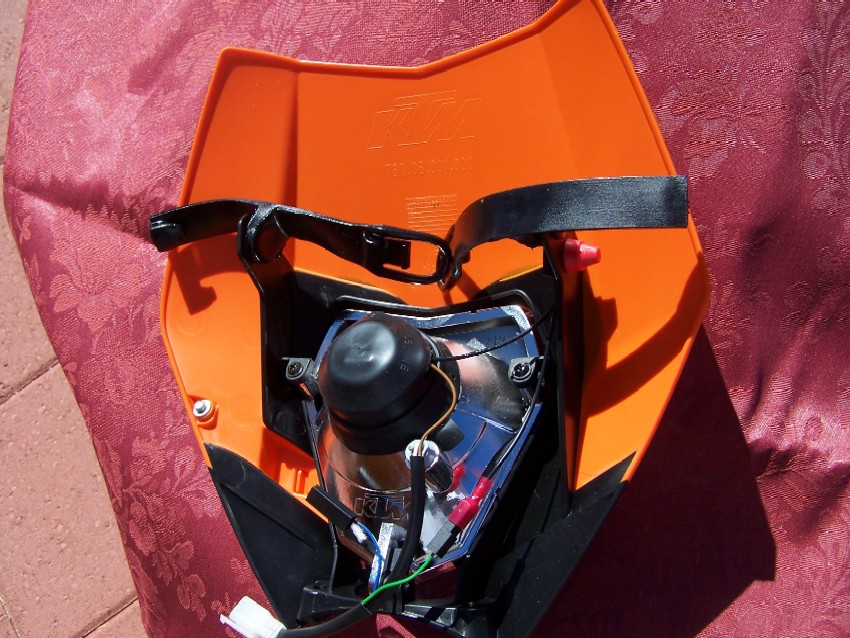

| Switch mounted to back of numberplate simplifies wiring and requires no
extra brackets |
For Canadian Orders see
www.aviciouscycle.ca/pmxtec.html or check with your
local dealer.
|
|
Orange Fits
2001-2012 Models
(2008 Front Fender required for use with 2001-2007 models) |
|
 |

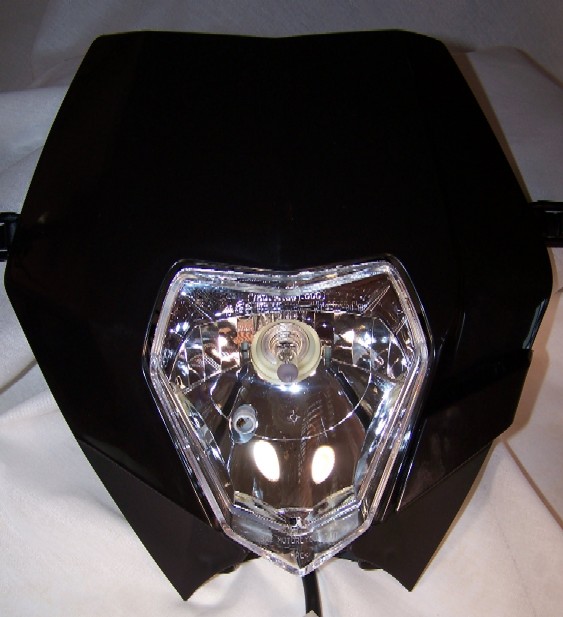

Black Fits
2001-2012 Models
(2008 Front Fender required for use with 2001-2007 models) |
|
|
|

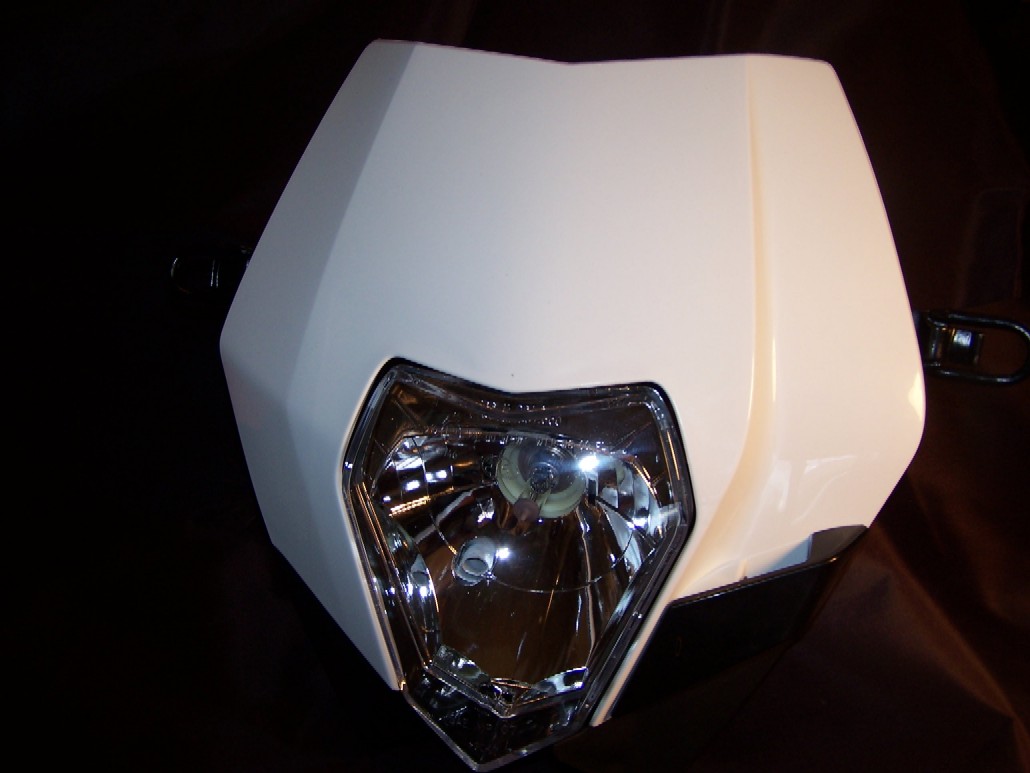

White Fits
2001-2012 Models
(2008 Front Fender required for use with 2001-2007 models) |
|
Need Spare Bulbs? Click Here.
Installation Procedures:
All XC-W, XCR-W, EXC, and MXC models 2005 and newer are prewired for this headlight
(Wiring kit included for 2001-2004 models). Installation procedure
as follows:
- Remove stock numberplate.
- From the wiring harness, connect the yellow wire and the white wire
together using included adapter wire.
- Plug in the main connector from the headlight assembly into the wiring
harness (Slightly more wiring required for 2001-2004 model years).

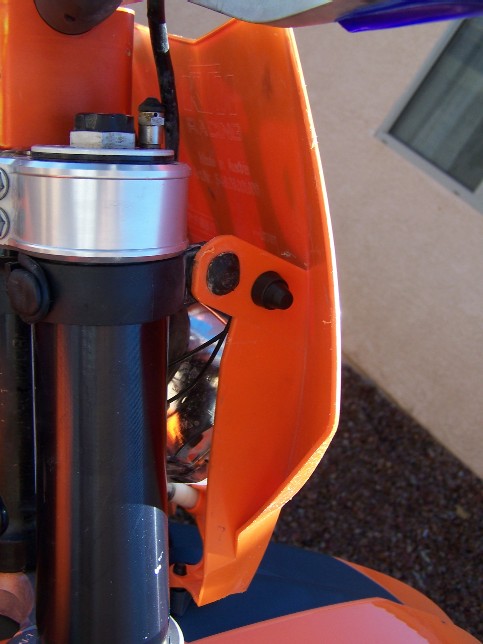

- Mount the headlight assembly to the bike by mating with the pins on the
front fender and securing the rubber straps around the front forks. Make sure
to route the brake cable properly through the guide on the numberplate. Use
included cable ties to keep wiring neat.
- It may be necessary to adjust the pointing of the headlight using the
adjustment screw located just below the headlight.
Comparison Photos:
| Stock '05-'06 525 EXC
|
PMXTEC Kit |
 Head
on shot of stock headlight |
 Head
on shot of PMXTEC Headlight |
Rider's perspective of stock headlight |
Rider's perspective of PMXTEC headlight |
 Stock
headlight from an angle |
 PMXTEC
Headlight from an angle |
|
